NPM-4WAY – Series Low Profile – 2″

NPM-4WAY -Series Low Profile - 2"

Choose which parts you wish to order and fill out the contact information and we'll be in touch with you shortly.

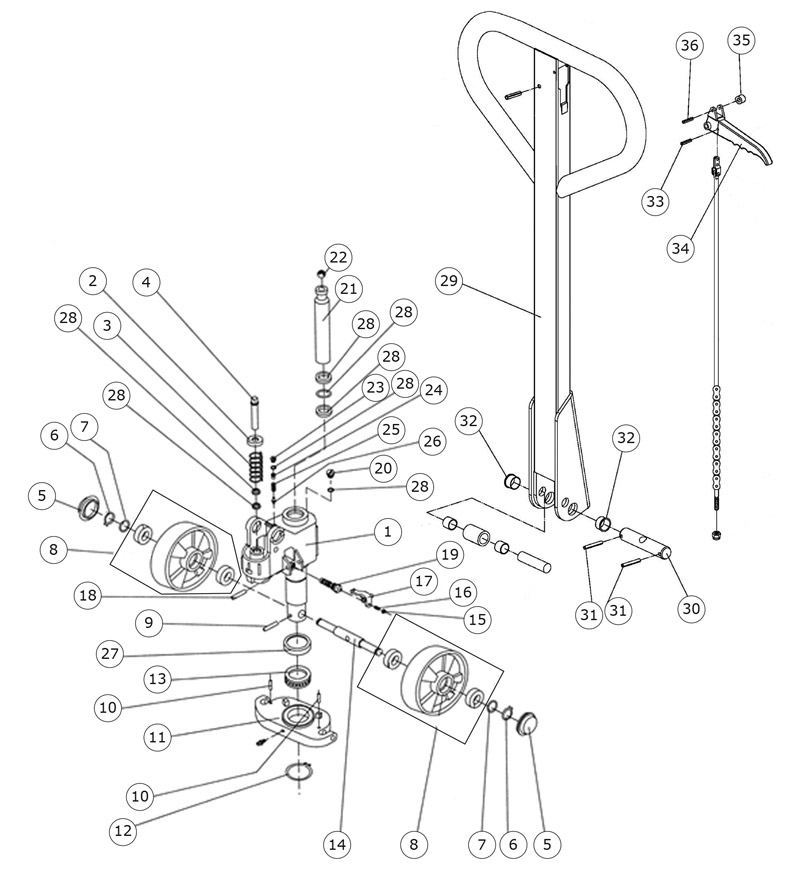

Pump Diagram
Click Here For Frame Parts
Item - Part Number - Description
[1] - NP300-55LP - Pump Assembly Quantity
Price: $195.00
[2] - NP301 - Spring Cap Quantity
Price: $7.00
[3] - NP302 - Spring Quantity
Price: $15.00
[4] - NP303 - Pump Piston Quantity
Price: $12.50
[5] - NP306 - Dust Cover Quantity
Price: $5.00
[6] - NP307 - Locking Ring Quantity
Price: $5.00
[7] - NP308 - Washer Quantity
Price: $5.00
[8] - Steer Wheel with Bearings Quantity
Price: $45.00
NP310A-P - Poly Steel Steer Wheel with Bearings Quantity
Price: $45.00
NP310A-N - Nylon Steer Wheel with Bearings Quantity
Price: $45.00
NP310A-S - Steel Steer Wheel with Bearings Quantity
Price: $45.00
[9] - NP311 - Pin Quantity
Price: $7.00
[10] - NP312 - Pin Quantity
Price: $5.00
[11] - NP313 - Base Quantity
Price: $52.50
[12] - NP314 - Locking Ring Quantity
Price: $7.00
[13] - NP315 - Bearing Quantity
Price: $25.00
[14] - NP316 - Shaft for Steering Wheel Quantity
Price: $12.50
[15] - NP317 - Nut Quantity
Price: $5.00
[16] - NP318 - Screw Quantity
Price: $5.00
[17] - NP500 - Release Lever Quantity
Price: $7.50
[18] - NP320 - Elastic Pin Quantity
Price: $5.00
[19] - NP321 - Valve Cartridge Quantity
Price: $37.50
[20] - NP324 - Valve Bolt Quantity
Price: $7.50
[21] - NP328 - Lift Piston Quantity
Price: $45.00
[22] - NP329 - Steel Ball Quantity
Price: $7.00
[23] - NP330 - Plug Quantity
Price: $5.00
[24] - NP332 - Valve Seat Quantity
Price: $5.00
[25] - NP333 - Spring Quantity
Price: $5.00
[26] - NP334 - Spindle Quantity
Price: $5.00
[27] - NP337 - Cover for Bearing Quantity
Price: $7.00
[28] - NP400 - Seal Kit Quantity
Price: $50.00
[29] - NP110A-B - Type B Handle Bar Assy Quantity
Price: $97.50
[30] - NP105 - Axle (with hole) Quantity
Price: $13.00
[31] - NP106 - Spring Pin Quantity
Price: $5.00
[32] - NP107 - Bushing Quantity
Price: $5.00
[33] - NP116 - Spring Pin Quantity
Price: $5.00
[34] - NP117 - Control Lever Quantity
Price: $11.00
[35] - NP118 - Roller Quantity
Price: $7.00
[36] - NP119 - Spring Pin Quantity
Price: $5.00
Frame
Click Here For Pump Parts
Item - Part Number - Description
[1] - NPM202 - Pin Quantity
Price: $5.00
[2] - Rocker Arm (Torsion Bar) Quantity
Price: $0.00
NPM203-33 - Rocker Arm for 33" wide jack Quantity
Price: $112.50
[3] - NPM204 - Bushing Quantity
Price: $7.00
[4] - NPM205 - Shaft Quantity
Price: $7.00
[5] - NPM206 - Grease Cup Quantity
Price: $5.00
[6] - NPM208 - Retaining Ring Quantity
Price: $5.00
[7] - NPM209 - Joint Quantity
Price: $15.00
[8] - NPM210 - Pin Quantity
Price: $11.00
[9] - NPM211 - Nut Quantity
Price: $5.00
[10] - Pushing Rod Quantity
Price: $0.00
NPM212L-48 - Pushing Rod for 48" long jack Quantity
Price: $62.50
[11] - NP213 - Retaining Ring Quantity
Price: $5.00
[12] - Rocker Rod (Bulkhead Pin) Quantity
Price: $0.00
NPM214-33 - Rocker Rod for 33" wide jack Quantity
Price: $62.50
[13] - NPM215L - Pin Quantity
Price: $7.00
[14] - NPM216L - Push Rod Pin Quantity
Price: $7.00
[15] - NPM217L - Washer Quantity
Price: $5.00
[16] - NPM218L - Shaft Quantity
Price: $11.00
[17] - NPM219L - Load Wheel Bracket Quantity
Price: $37.50
[18] - NPM220L - Load Wheel Quantity
Price: $30.00
[19] - NPM221L - Bearing Quantity
Price: $5.00
[20] - NPM222L - Washer Quantity
Price: $5.00
[21] - NPM223L - Load Wheel Axle Quantity
Price: $11.00
[22] - NPM226L - Elastic Pin Quantity
Price: $5.00
[23] - NPM228 - Greese Cup Quantity
Price: $5.00
[24] - NPM229 - Washer Quantity
Price: $5.00
